Specifics

HeadlessMc does not depend on any specific Minecraft version. However, some things can only be achieved by writing mods specific to each version. One of the main features of HeadlessMc is, that it can send commands to the running Minecraft client, a feature not found in any other Minecraft launcher. With a version specific mod that runs in the game and listens to the commands, we can control the game from the command line, even if it runs in headless mode without a screen.

HMC-Specifics

The hmc-specifics are a set of fabric, forge and neoforge mods for most major versions of Minecraft. They add command line support from HeadlessMc to it.

You can download the correct hmc-specifics version from Github, or use the specifics command in HeadlessMc:

> versions
id   name                          parent
0    1.21.5
1   neoforge-21.5.66-beta          1.21.5

> specifics 1 hmc-specifics
Installed hmc-specifics-2.2.0 for neoforge-21.5.66-beta successfully.

> launch 1
...

Once Minecraft has loaded, you can use help to get a list of commands you can use:

command      description
quit         Quits the running game.
help         Information about commands.
render       Outputs all text rendered on the screen.
click        Performs clicks in the Gui.
gui          Dumps the currently displayed screen.
text         Set text in text fields.
close        Closes the current screen, if ingame.
menu         Opens the menu if you are ingame.
memory       Displays Memory stats.
connect      Connects you to a server.
disconnect   Disconnects you from a server.
login        Logs you into an account.
key          Allows you to press keys.
msg          Sends a chat message.
/            Sends a chat command.
.            Sends a chat message.

GUIs

With gui you can dump the screen that is currently displayed by Minecraft.

> gui
Screen: net.minecraft.client.gui.screens.TitleScreen
Buttons:
id   text                                      x     y     w     h    on   type
0    Multiplayer                               113   116   200   20   1    Button
1    Singleplayer                              113   92    200   20   1    Button
2    Minecraft Realms                          113   140   200   20   1    Button
3    Mods                                      113   164   200   20   1    ModsButton
4    Language...                               89    200   20    20   1    CenteredIcon
5    Options...                                113   200   98    20   1    Button
6    Quit Game                                 215   200   98    20   1    Button
7    Accessibility Settings...                 317   200   20    20   1    CenteredIcon
8    Copyright Mojang AB. Do not distribute!   229   230   196   10   1    PlainTextButton
TextFields:
id   text   x   y   w   h   type
-    -      -   -   -   -   -

As you can see we are currently on the title screen of Minecraft, let's change that. With click we can click gui elements. Let's click the Singleplayer button.

> click 1
Clicking at x=213, y=102, button=0

Afterward, let's use gui again, we are now on the screen that lets us create a new SinglePlayer world. This is because we are on Neoforge 1.21.5 and have no worlds, on other versions we might have to click through the screen that lets us select our worlds first.

> gui
Screen: net.minecraft.client.gui.screens.worldselection.CreateWorldScreen
Buttons:
id   text               x     y     w     h    on   type
0    Cancel             217   214   150   20   1    Button
1    Create New World   59    214   150   20   1    Button
TextFields:
id   text        x     y    w     h    type
2    New World   109   48   208   20   EditBox
Other:
id   text                  x     y     w     h    type
3    World Name            109   35    55    9    StringWidget
4    Game Mode: Survival   108   76    210   20   CycleButton
5    Difficulty: Normal    108   104   210   20   CycleButton
6    Allow Commands: OFF   108   132   210   20   CycleButton

Text

We can give our world a name by using the text command to fill out the New World text field.

> text 2 "Name for our world"

Let's create and join a new world by clicking the Create New World button:

> click 1
Clicking at x=134, y=224, button=0
[19:54:53] [Server thread/INFO] [minecraft/IntegratedServer]: Starting integrated minecraft server version 1.21.5
...
[19:55:03] [Server thread/INFO] [minecraft/PlayerList]: 3arthqu4ke[local:E:62792f56] logged in with entity id 26 at (-4.5, 58.0, 15.5)
[19:55:03] [Server thread/INFO] [minecraft/MinecraftServer]: 3arthqu4ke joined the game
...
> gui
Minecraft is currently not displaying a Gui.

Nice, we have joined the world, Minecraft is not displaying any screens.

Chat

You can use . or msg to send a message, and / to send a command:

> . Hello World!
[21:05:04] [Render thread/INFO] [minecraft/ChatComponent]: [CHAT] <3arthqu4ke> Hello World!

> /gamemode creative
[21:05:31] [Render thread/INFO] [minecraft/ChatComponent]: [System] [CHAT] Set own game mode to Creative Mode

Inventory

We can open our Inventory by using:

> menu -inventory
Opening inventory...

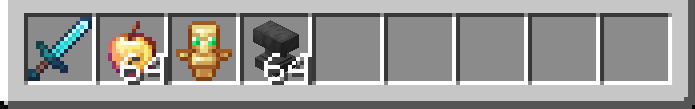

Let's assume we have played a little, then we are going to have some items in our inventory. The gui command will also output the inventory slots. We are wearing armor and have some items in our hotbar:

Screen: net.minecraft.client.gui.screens.inventory.InventoryScreen ... id text x y w h type 0 306 84 18 18 Slot ... 5 [Diamond Helmet] 160 64 18 18 Slot 6 [Diamond Chestplate] 160 82 18 18 Slot 7 [Diamond Leggings] 160 100 18 18 Slot 8 [Diamond Boots] 160 118 18 18 Slot ... 36 [Diamond Sword] 160 198 18 18 Slot 37 [Enchanted Golden Apple] 178 198 18 18 Slot 38 [Totem of Undying] 196 198 18 18 Slot 39 [Anvil] 214 198 18 18 Slot 40 232 198 18 18 Slot ...

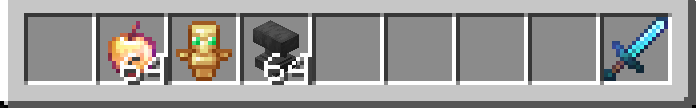

With click we can also move around items in our inventory:

> click 36
> click 44

With gui --tooltip we can get the tooltip of an item:

> gui --tooltip 36 Diamond Sword Sharpness V Unbreaking III Mending When in Main Hand: 7 Attack Damage 1.6 Attack Speed

With close you can close open menus. menu alone opens the in-game menu for pausing the game.

Hidden Strings

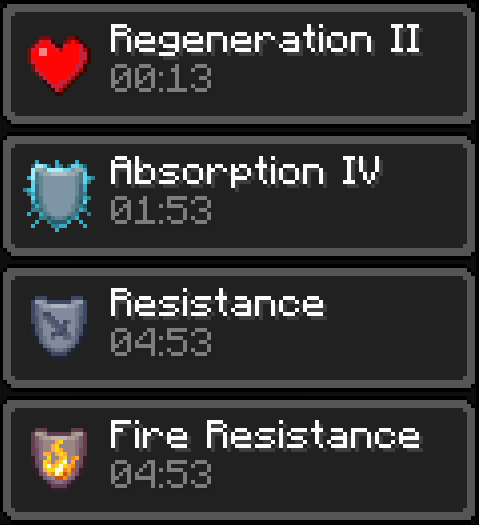

Some strings cannot be found by the gui command. But you can dump all strings rendered by the Minecraft client with the render command. Potion effects in the inventory are not displayed by gui, but render makes them visible:

> render
{x=177.0, y=268.0, text=64}
{x=238.0, y=243.0, text=8}
{x=97.0, y=6.0, text=Crafting}
{x=358.0, y=62.0, text=Regeneration II}
{x=358.0, y=72.0, text=00:13}
{x=358.0, y=95.0, text=Absorption IV}
{x=358.0, y=105.0, text=01:53}
{x=358.0, y=128.0, text=Resistance}
{x=358.0, y=138.0, text=04:53}
{x=358.0, y=161.0, text=Fire Resistance}
{x=358.0, y=171.0, text=04:53}

Keys and Screenshots

To simulate a key press use the key command. This way you can e.g. take a screenshot:

> key f2
[21:20:51] [Render thread/INFO] [minecraft/ChatComponent]: [System] [CHAT] Saved screenshot as 2025-05-14_21.20.50.png

With --duration you can specify the time until the key is released. With -release you can simulate the key release.

Servers

With the login command you can log into an account. This works similarly to the login command of HeadlessMc. HMC-Specifics attempts to automatically refresh your account every 24 hours, as that is when the token for authentication with servers runs out.

With connect you can connect to a server:

> connect hypixel.net

With disconnect you can disconnect from a server.

Supported versions

Hmc-specifics support the following versions of Minecraft:

Version	Forge	Fabric	NeoForge
1.21-1.21.5
1.20.6
1.20.1-1.20.4
1.19.4			-
1.18.2			-
1.17.1			-
1.16.5			-
1.12.2			-
1.8.9			-
1.7.10			-
